The most recent surveys of travel patterns in California, the 2012 California Household Travel Survey (CHTS) and the 2017 National Household Travel Survey (NHTS), show a decrease in the use of active modes over this period. Considering Caltrans and CalSTA’s goal of tripling walking and doubling biking and transit use in their most recent strategic plan, we evaluate the reasons for these unanticipated decreases in biking, walking and transit over this five-year time period. In this study we evaluate methodological differences between these two surveys to determine whether these declines may be attributed to such differences, or if indeed the declines are real. We find that the decreases are not likely to be primarily the result of differences in methodology, or analysis choices.
This study uses the 2017 NHTS add-on data for California and the 2012 CHTS data to evaluate changes in the use of active modes in California from 2012 to 2017, and whether these changes can be attributed to methodological differences between the surveys. We investigate the impacts of differences in methods between the two surveys, including difference in mode options in the survey and sample weighting. We also explore different metrics for evaluating mode shares. All analysis was carried out in R (R Core Team 2021). A more detailed discussion of the procedures is provided in Pike and Handy (2021).
Mode Options: The two survey instruments list bike and walk as mode options for trips in the same way, but the 2012 CHTS provides more transit options than the 2017 NHTS. To compare results, we consolidated the 2012 options into those included in 2017. For private vehicles, the 2017 NHTS lists pickup truck, car, SUV, and van. In the 2012 CHTS, the two private vehicle options are auto/van/truck driver and auto/van/truck passenger. We consolidated these into the one option: private vehicle. We present the consolidated modes, their components, and the mode shares in Table 1. A weighted chi-square test was conducted to compare the mode shares across the two years. The results indicate a significant difference in the trip mode shares between 2012 and 2017.
Sample Weighting: We examined two key variables used in the sample weights for 2017 but not in 2012: gender and month of the year. In the weighted 2012 data, 48.2% are male and 51.8% are female, compared to 49.7% male and 50.3% female for the California population in 2012 (US Census ACS Data Tables). With these state-wide population shares, we applied a post-hoc gender adjustment for the 2012 weights resulting in each female’s trip counting slightly less (0.9750 times) and each male’s trip a little more (1.032 times).
Mode Share Metrics: Changes in mode choice can be evaluated using metrics other than overall trip mode share. We also examine commute mode share and both distance- and time-weighted trip mode shares. Time-weighted mode shares could not be directly computed for 2012 as the results appear to be incorrect (with some walk trips lasting many hours). Instead, we multiplied the total weighted number of trips by each mode for the full set of 2012 modes by the average travel time for that mode, found in a report summarizing the results of the 2012 CHTS (California Department of Transportation 2013) and then combined them into the consolidated set of modes listed in Table 1.

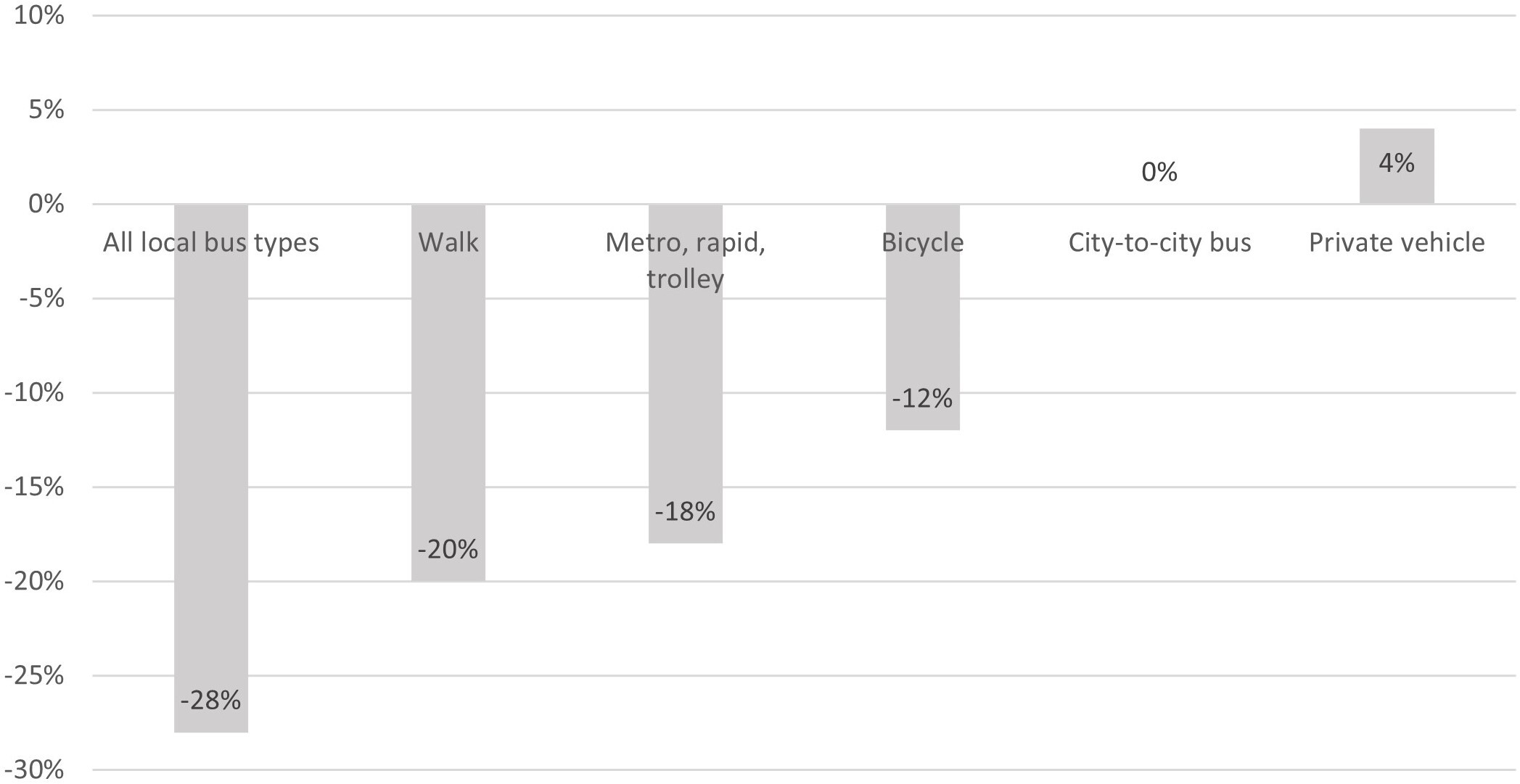

Figure 1 presents the percent change in trip mode shares from 2012 to 2017 after consolidating modes but before adjusting for differences in sample weighting between the surveys. These percent changes should be read as “over the period from 2012 to 2017 biking decreased by 12%”; that is the 2017 value (1.34% of trips) is 12% less than the 2012 value (1.53% of trips).
Post-hoc gender adjustments were applied to the 2012 weights but did not result in substantial changes in the 2012 mode shares, as shown in Table 2. Similar adjustments were made for the use of month in the 2017 weights, but as with gender, none substantially impacted the results.
For commute mode to work we find a small increase in walking and some transit modes, from 2012 to 2017. The decrease in biking is larger than for overall trip mode share. Active modes account for a higher share of commute trips than trips in general.
Our analysis of travel distance- and time-weighted mode shares showed that bicycle trips represent 0.71% of the total miles traveled in 2012 but only 0.31% in 2017. Miles travelled walking also decreased to a notable degree, from 1.70% in 2012 to 1.04% in 2017. The other modes saw only small changes.
Changes in travel time-weighted shares are similar to those of the distance-weighted shares and overall trip mode shares. The increase in the time-weighted share of local bus trips, and to some extent other forms of transit, is not matched by an increase in the total share of bus trips nor in the distance-weighted share, suggesting that bus travel got slower over this period.
The shifts in California’s mode shares from 2012 to 2017 are small, but apparent. Looking at the analysis in a number of ways, and accounting for differences in the surveys and analysis between the NHTS and CHTS, our results suggest that indeed there are decreases in the shares of transit, biking and walk trips that are not primarily the result of methodological differences between the two surveys. Distance- and time-weighted trip mode shares also show decreases, except for some transit modes. Future work should explore potential reasons for these declines, including residual effects of the Great Recession, driver’s license rule changes, cohort effects, infrastructure changes, and shifts in demographics.
This study was funded, partially or entirely, by a grant from the National Center for Sustainable Transportation (NCST), supported by the U.S. Department of Transportation (USDOT) and the California Department of Transportation (Caltrans) through the University Transportation Centers program. The authors would like to thank the NCST, the USDOT, and Caltrans for their support of university-based research in transportation, and especially for the funding, input and feedback provided in support of this project. The authors also thank Dr. Dillon Fitch for proposing the project in the first place.
