A Survey of Errors in GTFS Static Feeds from the United States

1. Questions

The General Transit Feed Specification (GTFS) is an Open Data standard that transit agencies use to publish data (McHugh 2013). A challenge in applying GTFS data is that agencies sometimes make mistakes in GTFS feeds. Hence, California imposes “Minimum GTFS Guidelines” to reduce errors (Cal-ITP 2024). Barbeau (2018) developed a software validator for GTFS “Realtime” feeds (which provide realtime transit information) and found errors in 54 of 78 realtime feeds tested. Since 2021, MobilityData (the organization that maintains GTFS standards) has offered an open-source Canonical GTFS Schedule Validator (MobilityData 2024a) aimed at GTFS Static^[1] feeds, which documents planned service. This paper runs the Validator on all working US GTFS Static feeds listed on the Mobility Database (MobilityData 2024b). The paper answers the question: “What kinds of errors occur in US GTFS Static feeds?” The appendix shows cases from real GTFS feeds of the ten most common errors.

2. Methods

We downloaded the most recent GTFS Static data for 632 feeds (including data from 743 agencies) in the US. Included are all US feeds with either a valid or unspecified (empty) status in the Mobility Database. We run the Canonical GTFS Schedule Validator Desktop^[2] app (v5.0.0) on each feed, then aggregate and analyze the results. The Validator outputs three levels of notices: errors, warnings and info. This study is limited to errors, which are violations of the specification. There are 72 errors (listed at https://gtfs-validator.mobilitydata.org/rules.html). Since some errors by their nature happen many times in one feed (e.g., every time a stop is recorded), rather than errors themselves we count error occurrences: the event that a feed exhibits some error at least once.

3. Findings

Table 1 shows the frequency distribution of error occurrences across feeds. Errors are relatively uncommon. Only 132 of 632 (21%) feeds contain errors, and most feeds with an error exhibit just one.

Errors are concentrated. Only 22 of 72 possible errors occur at all. Only ten errors occur in five or more feeds, and these ten account for 90% of all error occurrences. Figure 1 shows the distribution of error occurrences. The ‘Other’ category in the figure contains twelve miscellaneous errors that occur rarely (e.g., invalid URLs or colors). The ten most common errors are:

1. equal_shape_distance_diff_coordinates: Two points on a route shape have the same shape_dist_traveled but different coordinates (which is impossible).

2. decreasing_or_equal_stop_time_distance: For some trip, shape_dist_traveled decreases or stays the same from one stop to the next in stop_times.txt. Hence either shape_dist_traveled is wrongly calculated or the stops are out-of-order.

3. trip_distance_exceeds_shape_distance: The maximum of shape_dist_traveled in stop_times.txt exceeds the maximum of shape_dist_traveled in shapes.txt.

4. foreign_key_violation: Some file refers to a key which is never defined in its “parent” file: e.g., stop_times.txt references stop S132, but stops.txt does not mention S132.

5. invalid_currency_amount: The fare is invalid according to the ISO 4217 standard. Usually, fares are missing decimals: e.g., $2 instead of $2.00.

6. stop_time_timepoint_without_times: An entry in stop_times.txt is missing either arrival or departure time, but has the field timepoint set to 1 instead of 0.

7. duplicate_key: Two entities have the same key: e.g., two trips with the same trip_id.

8. block_trips_with_overlapping_stop_times: Trips with the same block_id should be served by the same vehicle. This error indicates that stop times with the same block_id overlap (so one vehicle cannot serve them).

9. missing_required_field: A file is missing ‘required’ or ‘conditionally required’ fields: e.g., a trip in trips.txt without a corresponding route_id.

10. fare_transfer_rule_missing_transfer_count: A fare transfer rule with same from_leg_group_id and to_leg_group_id is missing transfer_count: the field that defines a limit for consecutive transfers.

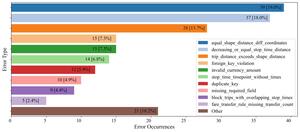

Figure 1.Distribution of error occurrences

The sources of errors are concentrated. The top three most common errors are related to the optional shape_distance_traveled field and account for a majority (51%) of all error occurrences. What is shape_dist_traveled? In shapes.txt file, shape_distance_traveled indicates how far each point on the path a vehicle travels lies from the start of the shape (moving along the path). In stop_times.txt, it indicates how far each stop is from the beginning of a trip. While optional, 74% of US feeds include shape_dist_traveled for every trip. It is best practice to include shape_dist_traveled when a route intersects itself, and the field also makes it possible to project stop locations from stops.txt onto route shapes.

Mapping errors to the files where they occur, as in Figure 2, highlights a second common source of error: fare data. The five fare_ files highlighted in the Figure account for 22.6% of all errors. Fares are such a major source of error because GTFS fare specifications are extremely complex so as to accommodate a wide range of fare schemes.

Figure 2.Error occurrences mapped to associated GTFS files

Since errors are concentrated among fares and shape_dist_traveled, it may not be hard to curtail errors by tackling these two causes. In particular, the complexity of fares specification calls for more examples and documentation. Fortunately, MobilityData is developing a new Fares V2 standard and has provided training videos and a template for it^[3]. However, this may not address cases in which an agency simply does not consider it worthwhile to obey the GTFS standards to the letter. Some violations of GTFS rules are probably perceived as inconsequential. For example, a fare (field amount) listing of 2 instead of 2.00 triggers the invalid_currency_amount error, but trip planning applications can interpret 2.

Note that our survey is limited to errors that can identified programmatically, but this can pass over some severe errors discernible only by manual investigation. Figure 3 shows an example from the Dallas Area Rapid Tranist (DART) feed. The Validator gives a ‘warning’ stop_too_far_from_shape that stops 33329 and 33554 are more than 100 meters from the shape of route 421. The underlying problem, though, is that the stops lie on a street (Junius Street) which the shape does not traverse at all. In reality, route 421 does travel Junius Street, taking a path different from the feed’s shape. Hence our survey of errors is not exhaustive.

Figure 3.The shape for DART route 421 westbound is drawn incorrectly
